Autoregression

Here, we give a example of autoregressive HMM, where the observation can depend on the previous observation. We achieve this by abusing the control mechanism, and slightly tweaking the simulation procedure.

using Distributions
using HiddenMarkovModels
import HiddenMarkovModels as HMMs
using LinearAlgebra
using CairoMakie
using Random
using StableRNGs
using StatsAPI

rng = StableRNG(63);

Model

We define a new subtype of AbstractHMM (see Custom HMM structures), which has state-dependent coefficients linking the previous observation to the next observation.

struct ARGaussianHMM{T} <: AbstractHMM
    init::Vector{T}
    trans::Matrix{T}
    a::Vector{T}
    b::Vector{T}
end

In state $i$, the observation is given by the linear model $y_t \sim \mathcal{N}(a_i y_{t-1} + b_i, 1)$. At the first time step, there will be no previous observation $y_{t-1}$, so we also allow the value missing.

function HMMs.initialization(hmm::ARGaussianHMM)
    return hmm.init
end

function HMMs.transition_matrix(hmm::ARGaussianHMM, _prev_obs::Union{Real,Missing})
    return hmm.trans
end

function HMMs.obs_distributions(hmm::ARGaussianHMM, prev_obs::Union{Real,Missing})
    means_by_state = [hmm.a[i] * coalesce(prev_obs, 0.0) + hmm.b[i] for i in 1:length(hmm)]
    return Normal.(means_by_state, 0.2)
end

In this case, the transition matrix does not depend on the previous observation.

Simulation

init = [0.6, 0.4]
trans = [0.95 0.05; 0.05 0.95]
a = [0.7, 0.8]
b = [+1.0, -1.0]
hmm = ARGaussianHMM(init, trans, a, b);

Simulation requires a manual procedure which reinjects the last observation as a control variable.

function simulate_autoregressive(rng::AbstractRNG, hmm::AbstractHMM, T::Integer)
    init = initialization(hmm)
    first_dists = obs_distributions(hmm, missing)
    first_state = rand(rng, Distributions.Categorical(init))
    first_obs = rand(rng, first_dists[first_state])
    state_seq = [first_state]
    obs_seq = [first_obs]

    for t in 2:T
        prev_state = state_seq[t - 1]
        prev_obs = obs_seq[t - 1]
        trans = transition_matrix(hmm, prev_obs)
        dists = obs_distributions(hmm, prev_obs)
        new_state = rand(rng, Distributions.Categorical(trans[prev_state, :]))
        new_obs = rand(rng, dists[new_state])
        push!(state_seq, new_state)
        push!(obs_seq, new_obs)
    end

    return (; state_seq=state_seq, obs_seq=obs_seq)
end

simulate_autoregressive (generic function with 1 method)

T = 300
times = 1:T
state_seq, obs_seq = simulate_autoregressive(rng, hmm, T)

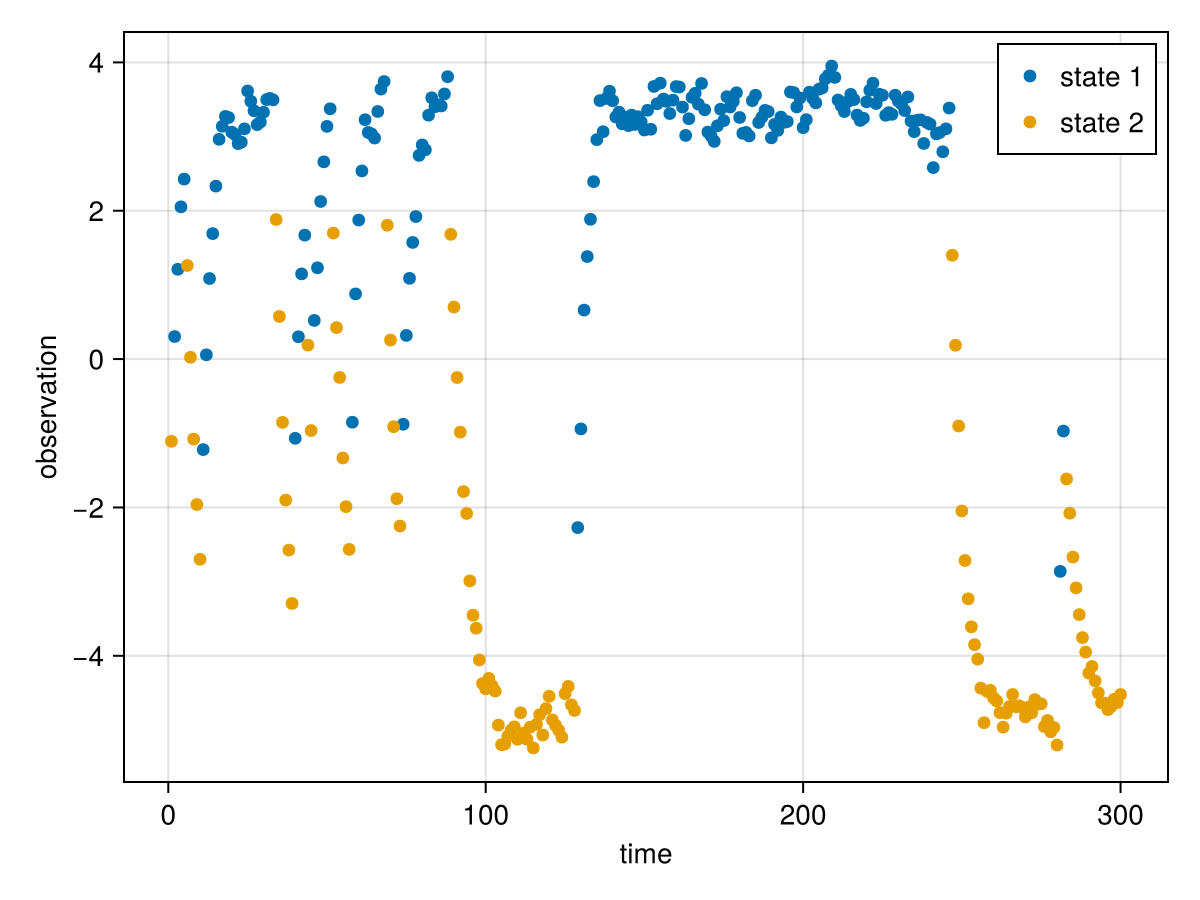

let
    fig = Figure()
    ax = Axis(fig[1, 1]; xlabel="time", ylabel="observation")
    scatter!(ax, times[state_seq .== 1], obs_seq[state_seq .== 1]; label="state 1")
    scatter!(ax, times[state_seq .== 2], obs_seq[state_seq .== 2]; label="state 2")
    axislegend(ax)
    fig
end

Inference

At inference time, the observations are considered fixed. Therefore, we are allowed to use them as controls.

control_seq = vcat(missing, obs_seq[1:(end - 1)])

300-element Vector{Union{Missing, Float64}}:
   missing
 -1.1085018417948282
  0.3038479809487052
  1.2104011700181205
  2.0525040392602403
  2.426705885211878
  1.2613729375668172
  0.024623936852238754
 -1.0785829196278915
 -1.9608500808520999
  ⋮
 -4.143832230689745
 -4.338804677474819
 -4.499707383307353
 -4.634376395512743
 -4.638207921124244
 -4.72602275967213
 -4.685139429089525
 -4.585752306183309
 -4.6314175219869815

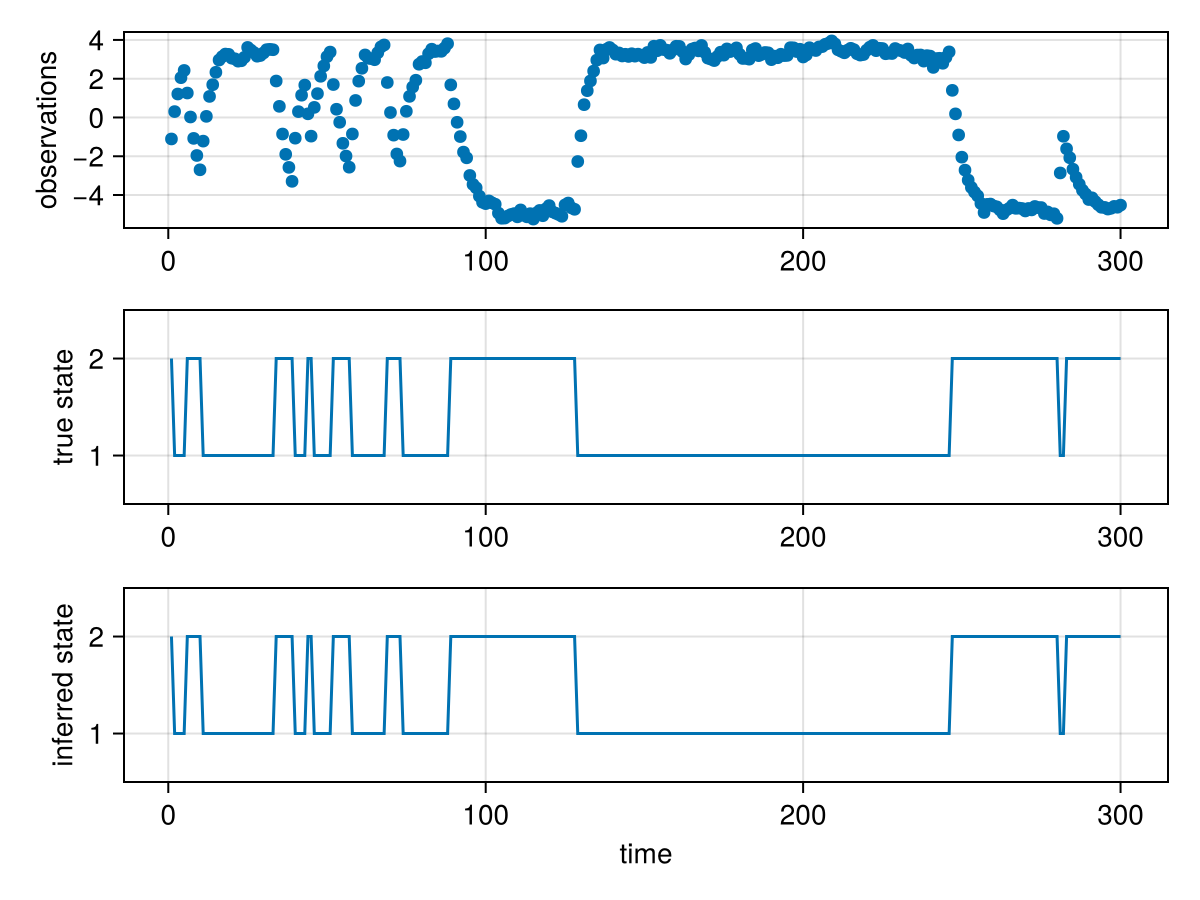

We show an example with Viterbi's algorithm.

best_state_seq, _ = viterbi(hmm, obs_seq, control_seq)

let
    fig = Figure()
    ax0 = Axis(fig[0, 1]; ylabel="observations")
    ax1 = Axis(fig[1, 1]; limits=(nothing, (0.5, 2.5)), yticks=1:2, ylabel="true state")
    ax2 = Axis(
        fig[2, 1];
        limits=(nothing, (0.5, 2.5)),
        yticks=1:2,
        ylabel="inferred state",
        xlabel="time",
    )
    scatter!(ax0, times, obs_seq)
    lines!(ax1, times, state_seq)
    lines!(ax2, times, best_state_seq)
    fig
end

This page was generated using Literate.jl.
