Automatic Differentiation

Julia’s most confusing superpower?

Guillaume Dalle

EPFL

Adrian Hill

TU Berlin

2024-10-29

Introduction

Slides

https://gdalle.github.io/JuliaOptimizationDays2024-AutoDiff/

Motivation

What is a derivative?

A linear approximation of a function around a point.

Why do we care?

Derivatives of complex programs are essential in optimization and machine learning.

What do we need to do?

Not much: Automatic Differentiation (AD) computes derivatives for us!

Bibliography

  • Blondel and Roulet (2024): the most recent book
  • Griewank and Walther (2008): the bible of the field
  • Baydin et al. (2018), Margossian (2019): concise surveys

Understanding AD

Derivatives: formal definition

Derivative of \(f\) at point \(x\): linear map \(\partial f(x)\) such that \[f(x + v) = f(x) + \partial f(x)[v] + o(\lVert v \rVert)\]

In other words,

\[\partial f(x)[v] = \lim_{\varepsilon \to 0} \frac{f(x + \varepsilon v) - f(x)}{\varepsilon}\]

Various flavors of differentiation

  • Manual: work out \(\partial f\) by hand
  • Numeric: \(\partial f(x)[v] \approx \frac{f(x+\varepsilon v) - f(x)}{\varepsilon}\)
  • Symbolic: enter a formula for \(f\), get a formula for \(\partial f\)
  • Automatic1: code a program for \(f\), get a program for \(\partial f(x)\)

Two ingredients of AD

Any derivative can be obtained from:

  1. Derivatives of basic functions: \(\exp, \log, \sin, \cos, \dots\)
  2. Composition with the chain rule:

\[\partial (f \circ g)(x) = \partial f(g(x)) \circ \partial g(x)\]

or its adjoint1

\[\partial (f \circ g)^*(x) = \partial g(x)^* \circ \partial f(g(x))^*\]

Homemade AD (1)

Basic functions

double(x) = 2x
(::typeof(double)) = x -> (v -> 2v)  # independent from x
square(x) = x .^ 2
(::typeof(square)) = x -> (v -> v .* 2x)  # depends on x

Chain rule

typeof(square  double)
ComposedFunction{typeof(square), typeof(double)}
function (c::ComposedFunction)
    f, g = c.outer, c.inner
    return x -> (f)(g(x))  (g)(x)
end

Homemade AD (2)

Let’s try it out

complicated_function = square  double  square  double
x = [3.0, 5.0]
v = [1.0, 0.0];
(complicated_function)(x)(v)
2-element Vector{Float64}:
 6912.0
    0.0
ε = 1e-5
(complicated_function(x + ε * v) - complicated_function(x)) / ε
2-element Vector{Float64}:
 6912.034559991297
    0.0

What about Jacobian matrices?

We could multiply matrices instead of composing linear maps:

\[J_{f \circ g}(x) = J_f(g(x)) \cdot J_g(x)\]

where the Jacobian matrix is

\[J_f(x) = \left(\partial f_i / \partial x_j\right)_{i,j}\]

  • very wasteful in high dimension (think of \(f = \mathrm{id}\))
  • ill-suited to arbitrary spaces

Matrix-vector products

We don’t need Jacobian matrices as long as we can compute their products with vectors:

Jacobian-vector products

\[J_{f}(x) v = \partial f(x)[v]\]

Propagate a perturbation \(v\) from input to output

Vector-Jacobian products

\[w^\top J_{f}(x) = \partial f(x)^*[w]\]

Backpropagate a sensitivity \(w\) from output to input

Forward mode

Consider \(f = f_L \circ \dots \circ f_1\) and its Jacobian \(J = J_L \cdots J_1\).

Jacobian-vector products decompose from layer \(1\) to layer \(L\):

\[J_L(J_{L-1}(\dots \underbrace{J_2(\underbrace{J_1 v}_{v_1})}_{v_2}))\]

Forward mode AD relies on the chain rule.

Reverse mode

Consider \(f = f_L \circ \dots \circ f_1\) and its Jacobian \(J = J_L \cdots J_1\).

Vector-Jacobian products decompose from layer \(L\) to layer \(1\):

\[((\underbrace{(\underbrace{w^\top J_L}_{w_L}) J_{L-1}}_{w_{L-1}} \dots ) J_2 ) J_1\]

Reverse mode AD relies on the adjoint chain rule.

Jacobian matrices are back

Consider \(f : \mathbb{R}^n \to \mathbb{R}^m\). How to recover the full Jacobian?

Forward mode

Column by column:

\[J = \begin{pmatrix} J e_1 & \dots & J e_n \end{pmatrix}\]

where \(e_i\) is a basis vector.

Reverse mode

Row by row:

\[J = \begin{pmatrix} e_1^\top J \\ \vdots \\ e_m^\top J \end{pmatrix}\]

Complexities

Consider \(f : \mathbb{R}^n \to \mathbb{R}^m\). How much does a Jacobian cost?

Theorem

Each JVP or VJP takes as much time and space as \(O(1)\) calls to \(f\).

sizes jacobian forward reverse best mode
generic jacobian \(O(n)\) \(O(m)\) depends
\(n = 1\) derivative \(O(1)\) \(O(m)\) forward
\(m = 1\) gradient \(O(n)\) \(O(1)\) reverse

Fast reverse mode gradients make deep learning possible.

Using AD

Three types of AD users

  1. Package users want to differentiate through functions
  2. Package developers want to write differentiable functions
  3. Backend developers want to create new AD systems

Python vs. Julia: users

Image: courtesy of Adrian Hill

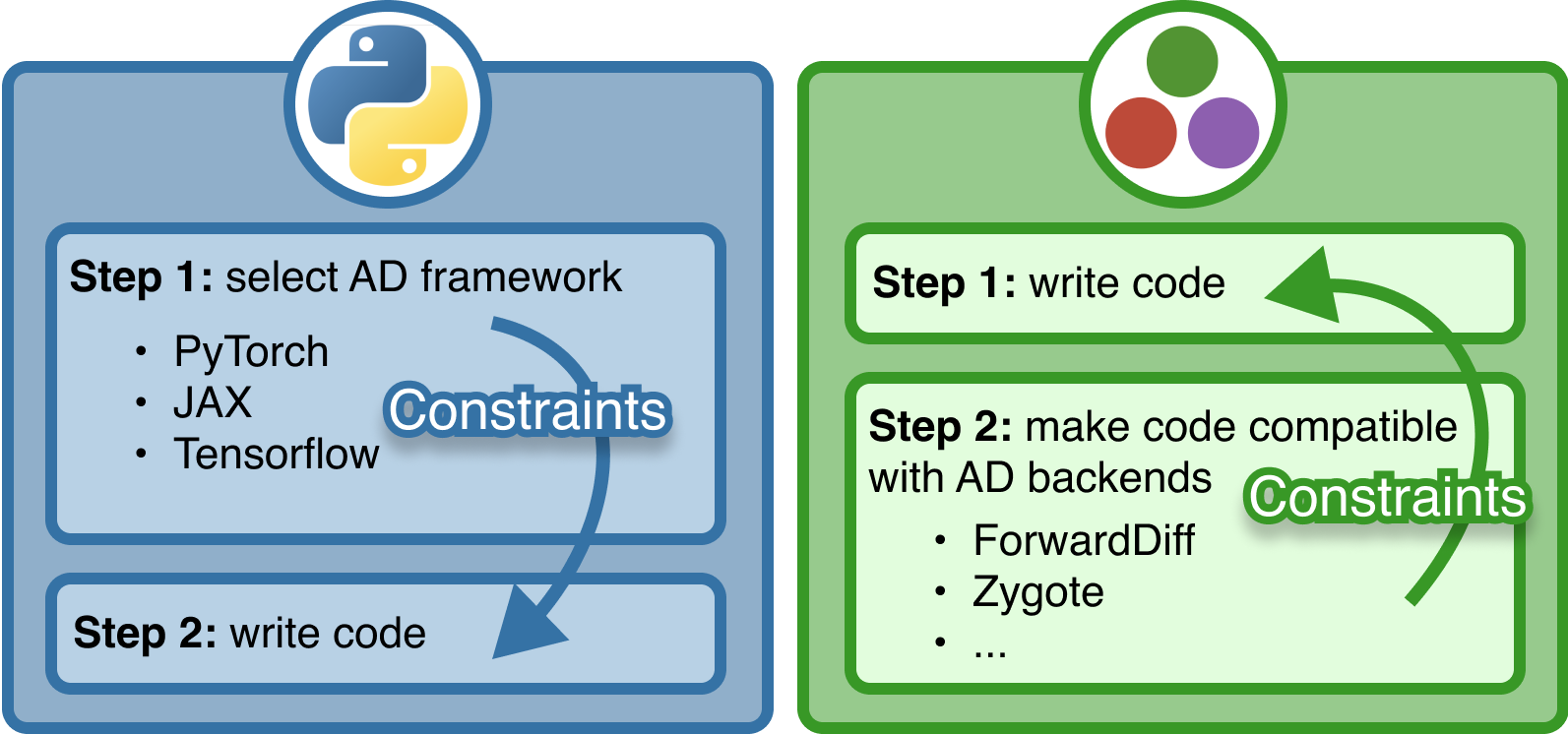

Python vs. Julia: developers

Image: courtesy of Adrian Hill

Why so many packages?

  • Conflicting paradigms:
    • numeric vs. symbolic vs. algorithmic
    • operator overloading vs. source-to-source
  • Cover varying subsets of the language
  • Historical reasons: developed by different people

Full list available at https://juliadiff.org/.

Meaningful criteria

  • Does this AD package execute without error?
  • Does it return the right derivative?
  • Does it run fast enough for me?

A simple decision tree

  1. Follow recommendations of high-level library (e.g. Flux.jl).
  2. Otherwise, choose mode from input/output dimensions.
  3. Then try the most thoroughly tested packages:
  4. If nothing works, finite differences (\(\sim\) forward mode).

Enabling AD

Each package has demands

  • ForwardDiff: generic number types
  • Zygote: no mutation
  • Enzyme: correct activity annotations, type stability (not covered here)

Typical ForwardDiff issue

import ForwardDiff

badcopy(x) = copyto!(zeros(size(x)), x)

ForwardDiff.jacobian(badcopy, ones(2))
MethodError: MethodError(Float64, (Dual{ForwardDiff.Tag{typeof(Main.Notebook.badcopy), Float64}}(1.0,1.0,0.0),), 0x0000000000007b14)
MethodError: no method matching Float64(::ForwardDiff.Dual{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2})

Closest candidates are:
  (::Type{T})(::Real, !Matched::RoundingMode) where T<:AbstractFloat
   @ Base rounding.jl:207
  (::Type{T})(::T) where T<:Number
   @ Core boot.jl:792
  Float64(!Matched::IrrationalConstants.Inv2π)
   @ IrrationalConstants ~/.julia/packages/IrrationalConstants/vp5v4/src/macro.jl:112
  ...

Stacktrace:
  [1] convert(::Type{Float64}, x::ForwardDiff.Dual{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2})
    @ Base ./number.jl:7
  [2] setindex!(A::Vector{Float64}, x::ForwardDiff.Dual{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2}, i1::Int64)
    @ Base ./array.jl:1021
  [3] _unsafe_copyto!(dest::Vector{Float64}, doffs::Int64, src::Vector{ForwardDiff.Dual{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2}}, soffs::Int64, n::Int64)
    @ Base ./array.jl:299
  [4] unsafe_copyto!
    @ ./array.jl:353 [inlined]
  [5] _copyto_impl!
    @ ./array.jl:376 [inlined]
  [6] copyto!
    @ ./array.jl:363 [inlined]
  [7] copyto!
    @ ./array.jl:385 [inlined]
  [8] badcopy(x::Vector{ForwardDiff.Dual{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2}})
    @ Main.Notebook ~/work/JuliaOptimizationDays2024-AutoDiff/JuliaOptimizationDays2024-AutoDiff/index.qmd:327
  [9] vector_mode_dual_eval!
    @ ~/.julia/packages/ForwardDiff/PcZ48/src/apiutils.jl:24 [inlined]
 [10] vector_mode_jacobian(f::typeof(badcopy), x::Vector{Float64}, cfg::ForwardDiff.JacobianConfig{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2, Vector{ForwardDiff.Dual{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2}}})
    @ ForwardDiff ~/.julia/packages/ForwardDiff/PcZ48/src/jacobian.jl:125
 [11] jacobian(f::Function, x::Vector{Float64}, cfg::ForwardDiff.JacobianConfig{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2, Vector{ForwardDiff.Dual{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2}}}, ::Val{true})
    @ ForwardDiff ~/.julia/packages/ForwardDiff/PcZ48/src/jacobian.jl:21
 [12] jacobian(f::Function, x::Vector{Float64}, cfg::ForwardDiff.JacobianConfig{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2, Vector{ForwardDiff.Dual{ForwardDiff.Tag{typeof(badcopy), Float64}, Float64, 2}}})
    @ ForwardDiff ~/.julia/packages/ForwardDiff/PcZ48/src/jacobian.jl:19
 [13] top-level scope
    @ ~/work/JuliaOptimizationDays2024-AutoDiff/JuliaOptimizationDays2024-AutoDiff/index.qmd:329

ForwardDiff troubleshooting

Allow numbers of type Dual to pass through your functions.

goodcopy(x) = copyto!(zeros(eltype(x), size(x)), x)

ForwardDiff.jacobian(goodcopy, ones(2))
2×2 Matrix{Float64}:
 1.0  0.0
 0.0  1.0

Typical Zygote issue

import Zygote

Zygote.jacobian(badcopy, ones(2))
ErrorException: ErrorException("Mutating arrays is not supported -- called copyto!(Vector{Float64}, ...)\nThis error occurs when you ask Zygote to differentiate operations that change\nthe elements of arrays in place (e.g. setting values with x .= ...)\n\nPossible fixes:\n- avoid mutating operations (preferred)\n- or read the documentation and solutions for this error\n  https://fluxml.ai/Zygote.jl/latest/limitations\n")
Mutating arrays is not supported -- called copyto!(Vector{Float64}, ...)
This error occurs when you ask Zygote to differentiate operations that change
the elements of arrays in place (e.g. setting values with x .= ...)

Possible fixes:
- avoid mutating operations (preferred)
- or read the documentation and solutions for this error
  https://fluxml.ai/Zygote.jl/latest/limitations

Stacktrace:
  [1] error(s::String)
    @ Base ./error.jl:35
  [2] _throw_mutation_error(f::Function, args::Vector{Float64})
    @ Zygote ~/.julia/packages/Zygote/NRp5C/src/lib/array.jl:70
  [3] (::Zygote.var"#547#548"{Vector{Float64}})(::Vector{Float64})
    @ Zygote ~/.julia/packages/Zygote/NRp5C/src/lib/array.jl:85
  [4] (::Zygote.var"#2633#back#549"{Zygote.var"#547#548"{Vector{Float64}}})(Δ::Vector{Float64})
    @ Zygote ~/.julia/packages/ZygoteRules/M4xmc/src/adjoint.jl:72
  [5] badcopy
    @ ~/work/JuliaOptimizationDays2024-AutoDiff/JuliaOptimizationDays2024-AutoDiff/index.qmd:327 [inlined]
  [6] (::Zygote.Pullback{Tuple{typeof(badcopy), Vector{Float64}}, Tuple{Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}, Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}, Zygote.var"#2633#back#549"{Zygote.var"#547#548"{Vector{Float64}}}}})(Δ::Vector{Float64})
    @ Zygote ~/.julia/packages/Zygote/NRp5C/src/compiler/interface2.jl:0
  [7] (::Zygote.var"#294#295"{Tuple{Tuple{Nothing}}, Zygote.Pullback{Tuple{typeof(badcopy), Vector{Float64}}, Tuple{Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}, Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}, Zygote.var"#2633#back#549"{Zygote.var"#547#548"{Vector{Float64}}}}}})(Δ::Vector{Float64})
    @ Zygote ~/.julia/packages/Zygote/NRp5C/src/lib/lib.jl:206
  [8] (::Zygote.var"#2169#back#296"{Zygote.var"#294#295"{Tuple{Tuple{Nothing}}, Zygote.Pullback{Tuple{typeof(badcopy), Vector{Float64}}, Tuple{Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}, Zygote.ZBack{Returns{Tuple{ChainRulesCore.NoTangent, ChainRulesCore.NoTangent}}}, Zygote.var"#2633#back#549"{Zygote.var"#547#548"{Vector{Float64}}}}}}})(Δ::Vector{Float64})
    @ Zygote ~/.julia/packages/ZygoteRules/M4xmc/src/adjoint.jl:72
  [9] call_composed
    @ ./operators.jl:1045 [inlined]
 [10] (::Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(badcopy)}, Tuple{Vector{Float64}}, @Kwargs{}}, Any})(Δ::Vector{Float64})
    @ Zygote ~/.julia/packages/Zygote/NRp5C/src/compiler/interface2.jl:0
 [11] call_composed
    @ ./operators.jl:1044 [inlined]
 [12] #_#103
    @ ./operators.jl:1041 [inlined]
 [13] (::Zygote.Pullback{Tuple{Base.var"##_#103", @Kwargs{}, ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, Vector{Float64}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}}, Tuple{Zygote.var"#2169#back#296"{Zygote.var"#294#295"{Tuple{Tuple{Nothing}, Tuple{Nothing}}, Zygote.var"#2013#back#207"{typeof(identity)}}}, Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(Zygote._jvec)}, Tuple{Zygote.var"#2013#back#207"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(Zygote._jvec)}, Tuple{}}}}, Zygote.var"#2180#back#306"{Zygote.var"#back#305"{:outer, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, typeof(Zygote._jvec)}}, Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(badcopy)}, Tuple{Zygote.var"#2013#back#207"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(badcopy)}, Tuple{}}}}, Zygote.var"#2180#back#306"{Zygote.var"#back#305"{:inner, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, typeof(badcopy)}}}}, Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(Zygote._jvec), typeof(badcopy)}, Tuple{Vector{Float64}}, @Kwargs{}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(badcopy)}, Tuple{Vector{Float64}}, @Kwargs{}}, Any}, Zygote.Pullback{Tuple{typeof(Zygote._jvec), Vector{Float64}}, Tuple{Zygote.Pullback{Tuple{typeof(vec), Vector{Float64}}, Tuple{}}}}, Zygote.var"#2029#back#216"{Zygote.var"#back#214"{2, 1, Zygote.Context{false}, typeof(Zygote._jvec)}}, Zygote.var"#2141#back#284"{Zygote.var"#280#283"}}}}})(Δ::Vector{Float64})
    @ Zygote ~/.julia/packages/Zygote/NRp5C/src/compiler/interface2.jl:0
 [14] #294
    @ ~/.julia/packages/Zygote/NRp5C/src/lib/lib.jl:206 [inlined]
 [15] #2169#back
    @ ~/.julia/packages/ZygoteRules/M4xmc/src/adjoint.jl:72 [inlined]
 [16] ComposedFunction
    @ ./operators.jl:1041 [inlined]
 [17] (::Zygote.Pullback{Tuple{ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, Vector{Float64}}, Tuple{Zygote.var"#2013#back#207"{typeof(identity)}, Zygote.var"#2366#back#423"{Zygote.var"#pairs_namedtuple_pullback#422"{(), @NamedTuple{}}}, Zygote.var"#2169#back#296"{Zygote.var"#294#295"{Tuple{Tuple{Nothing, Nothing}, Tuple{Nothing}}, Zygote.Pullback{Tuple{Base.var"##_#103", @Kwargs{}, ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, Vector{Float64}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}}, Tuple{Zygote.var"#2169#back#296"{Zygote.var"#294#295"{Tuple{Tuple{Nothing}, Tuple{Nothing}}, Zygote.var"#2013#back#207"{typeof(identity)}}}, Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(Zygote._jvec)}, Tuple{Zygote.var"#2013#back#207"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(Zygote._jvec)}, Tuple{}}}}, Zygote.var"#2180#back#306"{Zygote.var"#back#305"{:outer, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, typeof(Zygote._jvec)}}, Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(badcopy)}, Tuple{Zygote.var"#2013#back#207"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(badcopy)}, Tuple{}}}}, Zygote.var"#2180#back#306"{Zygote.var"#back#305"{:inner, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, typeof(badcopy)}}}}, Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(Zygote._jvec), typeof(badcopy)}, Tuple{Vector{Float64}}, @Kwargs{}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(badcopy)}, Tuple{Vector{Float64}}, @Kwargs{}}, Any}, Zygote.Pullback{Tuple{typeof(Zygote._jvec), Vector{Float64}}, Tuple{Zygote.Pullback{Tuple{typeof(vec), Vector{Float64}}, Tuple{}}}}, Zygote.var"#2029#back#216"{Zygote.var"#back#214"{2, 1, Zygote.Context{false}, typeof(Zygote._jvec)}}, Zygote.var"#2141#back#284"{Zygote.var"#280#283"}}}}}}}, Zygote.Pullback{Tuple{Type{NamedTuple}}, Tuple{}}}})(Δ::Vector{Float64})
    @ Zygote ~/.julia/packages/Zygote/NRp5C/src/compiler/interface2.jl:0
 [18] (::Zygote.var"#78#79"{Zygote.Pullback{Tuple{ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, Vector{Float64}}, Tuple{Zygote.var"#2013#back#207"{typeof(identity)}, Zygote.var"#2366#back#423"{Zygote.var"#pairs_namedtuple_pullback#422"{(), @NamedTuple{}}}, Zygote.var"#2169#back#296"{Zygote.var"#294#295"{Tuple{Tuple{Nothing, Nothing}, Tuple{Nothing}}, Zygote.Pullback{Tuple{Base.var"##_#103", @Kwargs{}, ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, Vector{Float64}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}}, Tuple{Zygote.var"#2169#back#296"{Zygote.var"#294#295"{Tuple{Tuple{Nothing}, Tuple{Nothing}}, Zygote.var"#2013#back#207"{typeof(identity)}}}, Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(Zygote._jvec)}, Tuple{Zygote.var"#2013#back#207"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(Zygote._jvec)}, Tuple{}}}}, Zygote.var"#2180#back#306"{Zygote.var"#back#305"{:outer, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, typeof(Zygote._jvec)}}, Zygote.Pullback{Tuple{typeof(Base.unwrap_composed), typeof(badcopy)}, Tuple{Zygote.var"#2013#back#207"{typeof(identity)}, Zygote.Pullback{Tuple{typeof(Base.maybeconstructor), typeof(badcopy)}, Tuple{}}}}, Zygote.var"#2180#back#306"{Zygote.var"#back#305"{:inner, Zygote.Context{false}, ComposedFunction{typeof(Zygote._jvec), typeof(badcopy)}, typeof(badcopy)}}}}, Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(Zygote._jvec), typeof(badcopy)}, Tuple{Vector{Float64}}, @Kwargs{}}, Tuple{Zygote.Pullback{Tuple{typeof(Base.call_composed), Tuple{typeof(badcopy)}, Tuple{Vector{Float64}}, @Kwargs{}}, Any}, Zygote.Pullback{Tuple{typeof(Zygote._jvec), Vector{Float64}}, Tuple{Zygote.Pullback{Tuple{typeof(vec), Vector{Float64}}, Tuple{}}}}, Zygote.var"#2029#back#216"{Zygote.var"#back#214"{2, 1, Zygote.Context{false}, typeof(Zygote._jvec)}}, Zygote.var"#2141#back#284"{Zygote.var"#280#283"}}}}}}}, Zygote.Pullback{Tuple{Type{NamedTuple}}, Tuple{}}}}})(Δ::Vector{Float64})
    @ Zygote ~/.julia/packages/Zygote/NRp5C/src/compiler/interface.jl:91
 [19] withjacobian(f::Function, args::Vector{Float64})
    @ Zygote ~/.julia/packages/Zygote/NRp5C/src/lib/grad.jl:150
 [20] jacobian(f::Function, args::Vector{Float64})
    @ Zygote ~/.julia/packages/Zygote/NRp5C/src/lib/grad.jl:128
 [21] top-level scope
    @ ~/work/JuliaOptimizationDays2024-AutoDiff/JuliaOptimizationDays2024-AutoDiff/index.qmd:355

Zygote troubleshooting

Define a custom rule with ChainRulesCore:

using ChainRulesCore, LinearAlgebra

badcopy2(x) = badcopy(x)

function ChainRulesCore.rrule(::typeof(badcopy2), x)
    y = badcopy2(x)
    badcopy2_vjp(dy) = NoTangent(), I' * dy
    return y, badcopy2_vjp
end

Zygote.jacobian(badcopy2, ones(2))
([1.0 0.0; 0.0 1.0],)

DifferentiationInterface

Goals

  • DifferentiationInterface.jl (DI) offers a common syntax for all AD packages1
  • AD users can compare correctness and performance without reading each documentation

The fine print

DI may be slower than a direct call to the package’s API (mostly with Enzyme).

Supported packages

Getting started

  1. Load the necessary packages
using DifferentiationInterface; import ForwardDiff, Enzyme, Zygote
f(x) = sum(abs2, x)
x = [1.0, 2.0, 3.0, 4.0]
  1. Use one of DI’s operators with a backend from ADTypes.jl
value_and_gradient(f, AutoForwardDiff(), x)
(30.0, [2.0, 4.0, 6.0, 8.0])
value_and_gradient(f, AutoEnzyme(), x)
(30.0, [2.0, 4.0, 6.0, 8.0])
value_and_gradient(f, AutoZygote(), x)
(30.0, [2.0, 4.0, 6.0, 8.0])
  1. Increase performance via DI’s preparation mechanism.

Features

  • Support for functions with scalar/array inputs & outputs:
    • f(x, args...)
    • f!(y, x, args...)
  • Eight standard operators including derivative, gradient, jacobian and hessian
  • Combine different backends using SecondOrder
  • Translate between backends using DifferentiateWith
  • Exploit Jacobian / Hessian sparsity with AutoSparse

Sparsity

Compressed differentiation

If two Jacobian columns don’t overlap:

  1. evaluate their sum in 1 JVP instead of 2
  2. redistribute the nonzero coefficients.

\[J = \begin{pmatrix} 1 & \cdot & 5 \\ \cdot & 3 & 6 \\ 2 & \cdot & 7 \\ \cdot & 4 & 8 \end{pmatrix} \quad \implies \quad J(e_1 + e_2) \text{ and } J e_3\]

Prerequisite 1: pattern detection

Find which coefficients might be nonzero.

struct T <: Real  # tracer
    set::Set{Int}
end
Base.:+(a::T, b::T) = T(a.set  b.set)
Base.:*(a::T, b::T) = T(a.set  b.set)
Base.sign(x::T) = T(Set{Int}())

Trace dependencies on inputs during function execution.

f(x) = x[1] + sign(x[2]) * x[3]

xt = T.([Set(1), Set(2), Set(3)])
yt = f(xt)
T(Set([3, 1]))

Prerequisite 2: pattern coloring

Split columns into non-overlapping groups.

using SparseArrays
J = sprand(30, 30, 0.2)
show_colors(J; scale=10, pad=2)
[ Info: Colored a (30, 30) matrix with 16 colors
using BandedMatrices
J = brand(30, 30, 3, 3)
show_colors(J; scale=10, pad=2)
[ Info: Colored a (30, 30) matrix with 7 colors

New sparse AD ecosystem

Already used by SciML and JuliaSmoothOptimizers.

Conclusion

Going further

Take-home message

Computing derivatives is automatic and efficient.

Each AD system comes with limitations.

Learn to recognize and overcome them.

References

Baydin, Atilim Gunes, Barak A. Pearlmutter, Alexey Andreyevich Radul, and Jeffrey Mark Siskind. 2018. “Automatic Differentiation in Machine Learning: A Survey.” Journal of Machine Learning Research 18 (153): 1–43. http://jmlr.org/papers/v18/17-468.html.
Blondel, Mathieu, Quentin Berthet, Marco Cuturi, Roy Frostig, Stephan Hoyer, Felipe Llinares-López, Fabian Pedregosa, and Jean-Philippe Vert. 2022. “Efficient and Modular Implicit Differentiation.” In Advances in Neural Information Processing Systems. https://openreview.net/forum?id=Q-HOv_zn6G.
Blondel, Mathieu, and Vincent Roulet. 2024. “The Elements of Differentiable Programming.” arXiv. https://doi.org/10.48550/arXiv.2403.14606.
Griewank, Andreas, and Andrea Walther. 2008. Evaluating Derivatives: Principles and Techniques of Algorithmic Differentiation. 2nd ed. Philadelphia, PA: Society for Industrial and Applied Mathematics.
Mandi, Jayanta, James Kotary, Senne Berden, Maxime Mulamba, Victor Bucarey, Tias Guns, and Ferdinando Fioretto. 2023. “Decision-Focused Learning: Foundations, State of the Art, Benchmark and Future Opportunities.” arXiv. https://doi.org/10.48550/arXiv.2307.13565.
Margossian, Charles C. 2019. “A Review of Automatic Differentiation and Its Efficient Implementation.” WIREs Data Mining and Knowledge Discovery 9 (4): e1305. https://doi.org/10.1002/widm.1305.
Mohamed, Shakir, Mihaela Rosca, Michael Figurnov, and Andriy Mnih. 2020. “Monte Carlo Gradient Estimation in Machine Learning.” Journal of Machine Learning Research 21 (132): 1–62. http://jmlr.org/papers/v21/19-346.html.
